Grainfather G40 All Grain Brewing System

SPECIAL NOTE ABOUT SHIPPING: The G40 package is shipped on a pallet and can be shipped to any location within Australia. Prices for delivery will vary. Delivery costs may differ Upon placing your order, we will promptly provide you with a freight quote for your delivery. Alternatively, feel free to reach out to Hamish at AHB on 03 95753900 for personalised freight quote via phone. Thank you!

This Super Kit package includes:

Grainfather G40 All Grain Brewing System
18L Sparge Water Heater
High Performance Cleaner
Stainless Steel Paddle

See a full description of all contents below

The G40

The Grainfather G40 is the latest brewing system in the G SERIES range. This system is your new best friend for brewing up to 38L of beer and filling 2 x 19L kegs. With a max grain bill of 13kg, you can adjust a high ABV recipe to a smaller batch volume, allowing you to brew larger grain bills that can easily go above 9% ABV.

You can manage your brew remotely with the smart controller that has built-in wireless connectivity. Simply connect your mobile device to the controller and manage your brew through the free Grainfather App. Once connected, you’ll have access to a step-by-step brewing system and heaps of recipes to choose from, or you can even create your own!

Special Note Regarding Shipping: Due to its weight & size this item needs to be shipped via pallet. Once your order is placed, we will be in touch right away with a confirmed freight quote. Alternatively, to confirm a shipping cost please call us on 03 95753900 for a quote.

Batch Volume	Grain Bill
Maxium: 40L	Maximum 13kg
Minimum: 10L	Minimum 3kg

FEATURES

G40 body built out of high grade, 304 stainless steel
Heats wort evenly with conical shaped surface mounted heating element
Conical base for maximum wort transfer
Connect your mobile device to the smart controller with built-in wireless connectivity via the Grainfather App and manage your brew remotely. Our free brewing app has all the tools, calculators and recipes that empower you to create amazing beer at home. Or get creative and design your own with our feature-packed recipe creator!
Comes with a counterflow wort chiller for a more efficient and sanitary wort transfer
PID (proportional integral derivative) a specially developed algorithm for managing accurate and consistent mash temperatures
Quick and easy cleaning with CIP (clean in place) capability
Integrated sight glass for easy volume reading
Rolled edge grain plate and perforated basket for easy mashing
Large bottom mounted dual-stage hop filter reduces pump and chiller blockages
The G40 comes in 10amp mode, but you can choose to upgrade it to 15amp mode if you wish to add more power to your brew.

SUPPORT

All Grainfather products are designed to produce professional results, just like the craft breweries. That’s why every G40 comes with a 3-year warranty fully supported by Australian Home Brewing.

Additional Instructions: GRAINFATHER G40 INSTRUCTIONS pdf

WHAT'S INCLUDED	SPECS
Smart controller with wireless connectivity	Size: 725 x 555mm
Counterflow wort chiller	Weight: 29kg
Built-in pump	Max preboil volume: 46L
Glass lid	Batch volume: Maximum:40L \| Minimum: 10L
Grain basket lifting bar	Grain bill: Max: 13kg \| Min: 3kg *
Grain basket	Power: 2300W (10 Amp Mode )
Recirculation hose	Power Upgrade Option: 3300W (15 Amp Mode)**
Grain plate	Connectivity: Wireless control
Hop filter	Thermal protection: 2 automatic reset switches
Fittings

*Grian Bill Note: maximum weight depends on grain crush, type and variety. Large grain bills may also require the use of an additional grain plate.

** Power Upgrade Option to 15amp mode. The G40 has a default 10-amp mode, but it can also be used in 15 amp mode if you wish to add more power to your system. To enable 15-amp mode, your power socket must be professionally installed by a certified electrician or you will void your warranty. The 15amp cable is sold separately.

G40 Tech Sheet pdf

The 18L Sparge Water Heater

The Grainfather Stainless Steel Sparge Water Heater is a temperature controlled unit with 18lt capacity. Heat your sparge water to the correct temperature ready to go at the time of sparge.

When you heat your sparge water when you begin the mash it is ready for when you need to sparge. Once water is at required temperature, it will hold that temperature until changed or turned off. Also features sight glass, tap and heating lights.

Sparge Water Heater Features

18 L Capacity
Stainless Steel Body
2 kw Element
Sight Glass (with 1 L graduations visible)
Tap
Accurate Temperature Control
Heating Lights (to indicate input temperature has been reached or is still being heated)

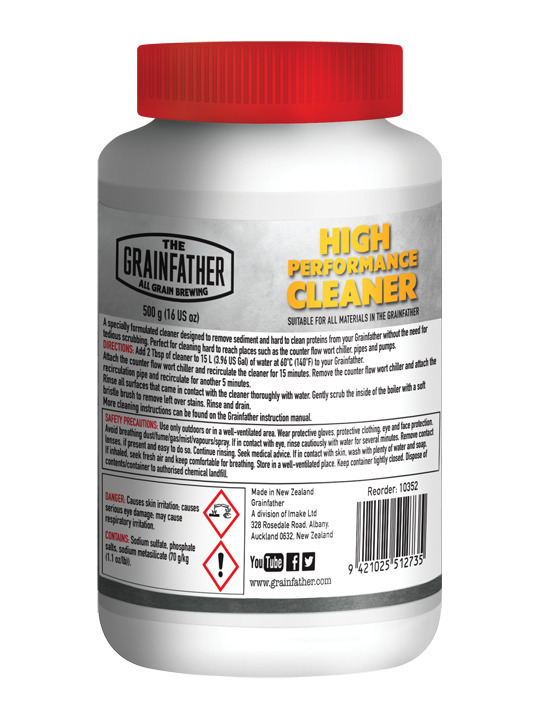

The High Performance Cleaner

Grainfather High Performance Cleaner is specially formulated to be used with the Grainfather and to be used on both stainless steel and Copper. It is important to use the right type of cleaners because during mashing excess proteins produced can scold on hot surfaces and can be a challenge to remove. The job is easy and gentle with this product. It is also does a great job in the counterflow wort chiller and pipes.
